Panel Mount JST-XH Board
Panel Mount JST-XH Board
Couldn't load pickup availability

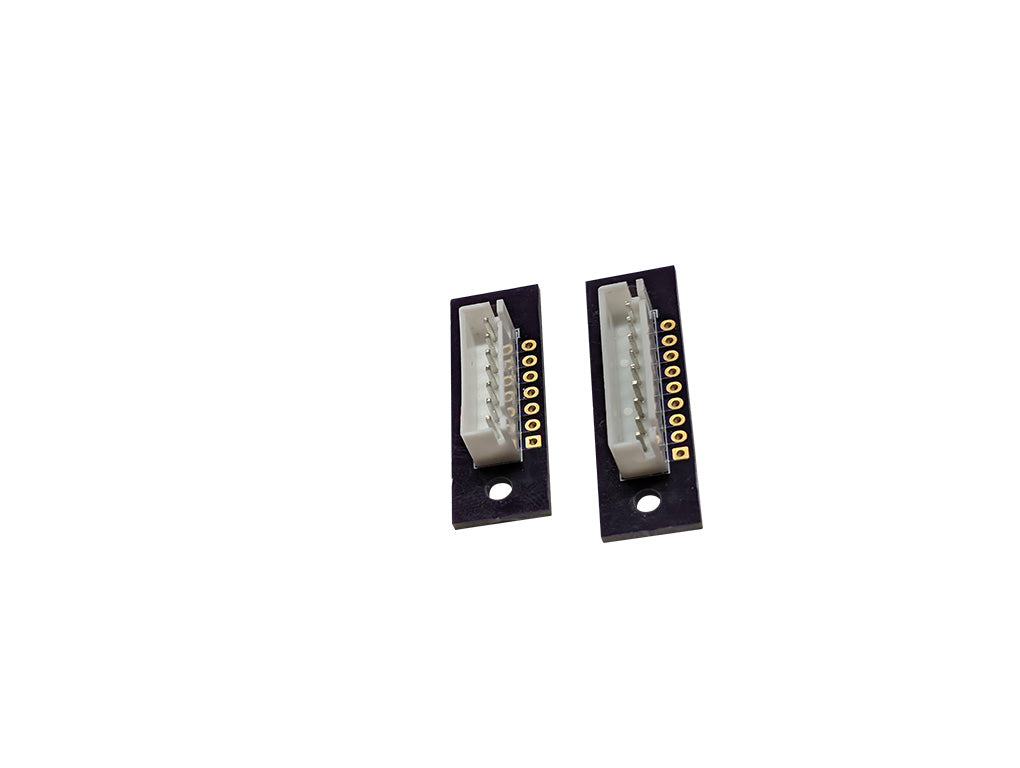

***These connectors are no longer automatically modified to be used for 2s+ balance connection, such as in our charge case kits. You must explicitly request it. Product photos shows the modified connector.***
Mostly compatible with the older style PRC boards that are discontinued. Same board size and same mounting hole spacing. These have the connectors already modified to allow you to plug in any size JST cable, whether 2s or 8s (or 6s for the 6s version) or anywhere in between, perfect for KC3D charge case kits. You can also request not to have the connector modified if you only plan to use them to plug a balance board into.

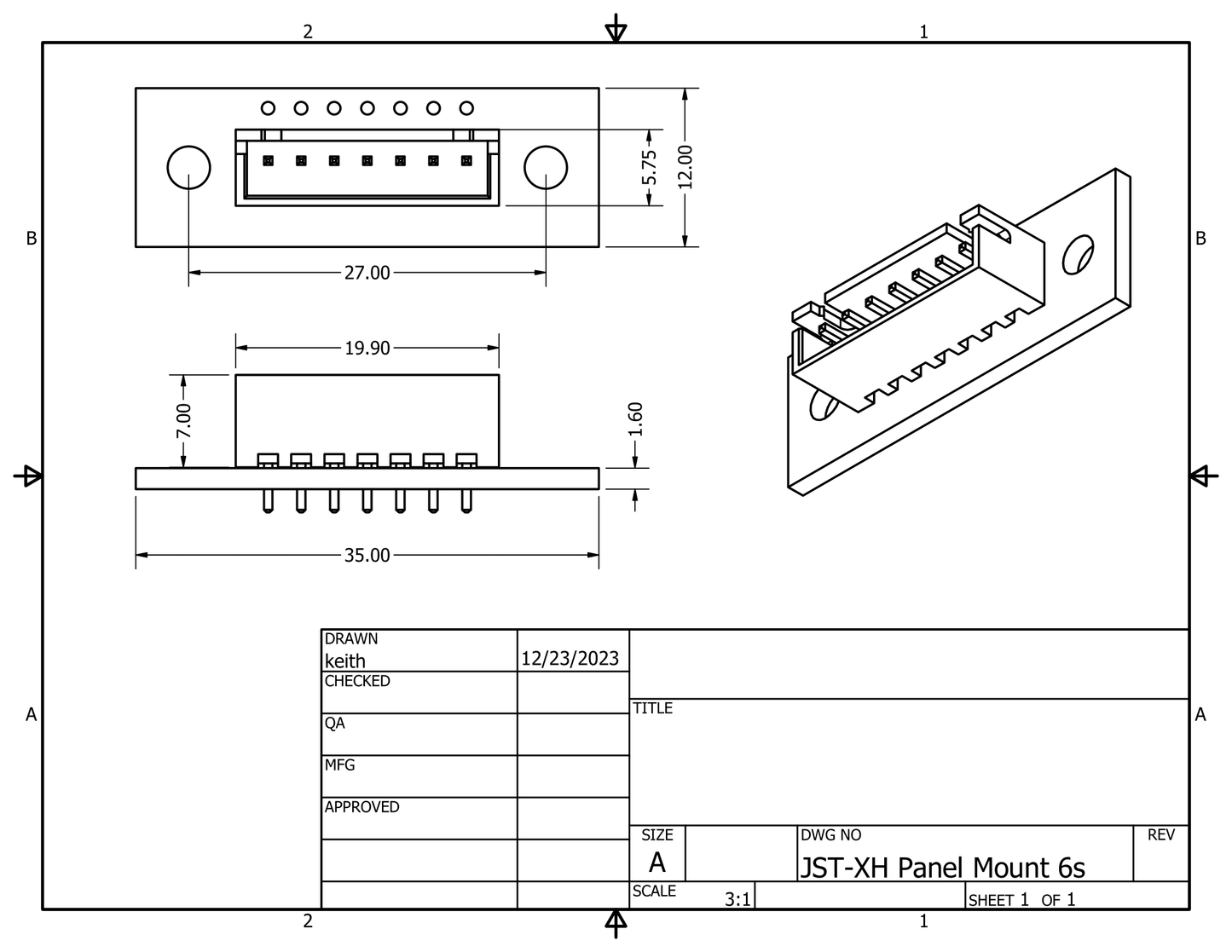

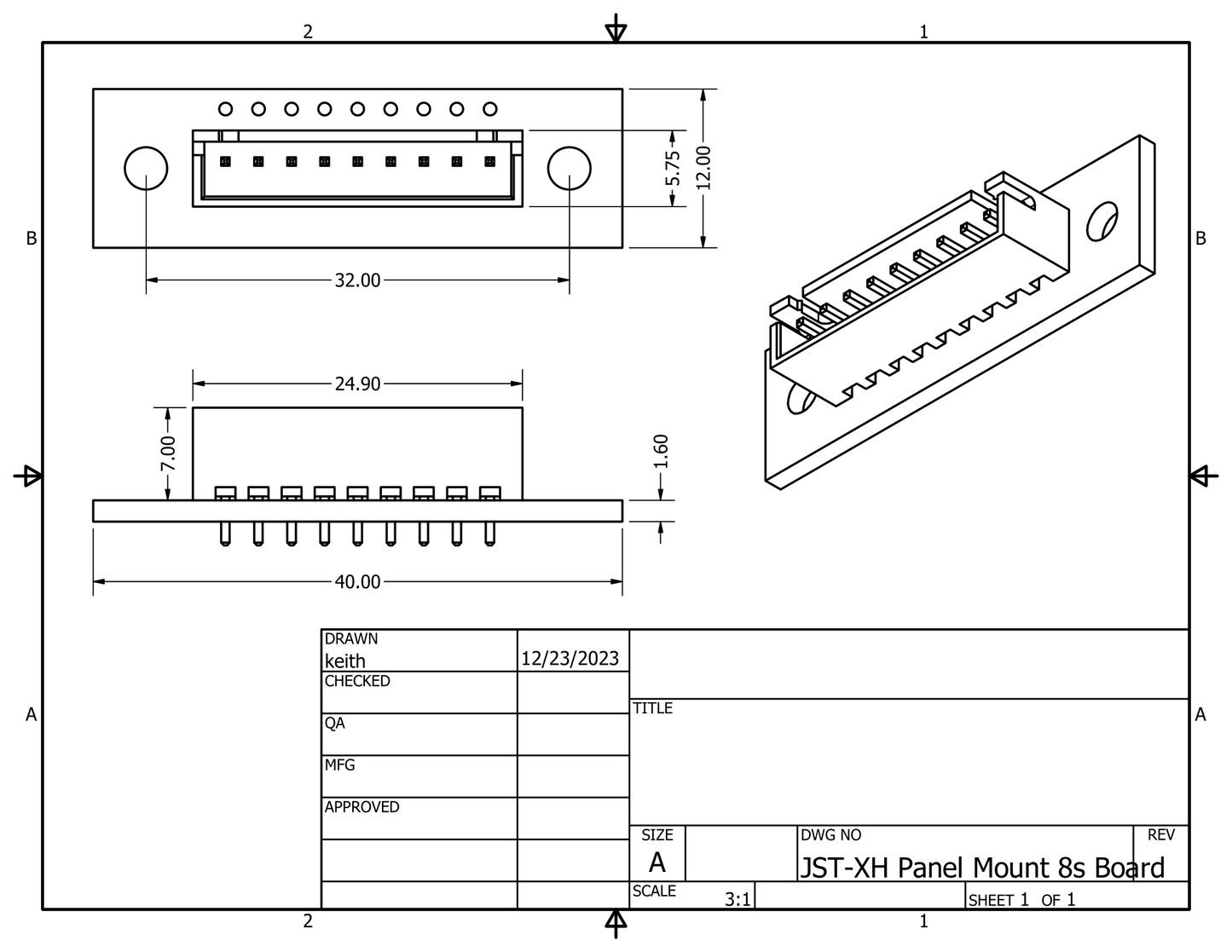

See product photos for PCB dimensions for use in your own charge case designs. The recommended panel cutout for the JST itself is 6.1mm x 20.5mm for 6s or 6.1mm x 25.5mm for 8s, with a 0.5mm offset from the hole centers. These boards will work perfectly in KC3D case kits.

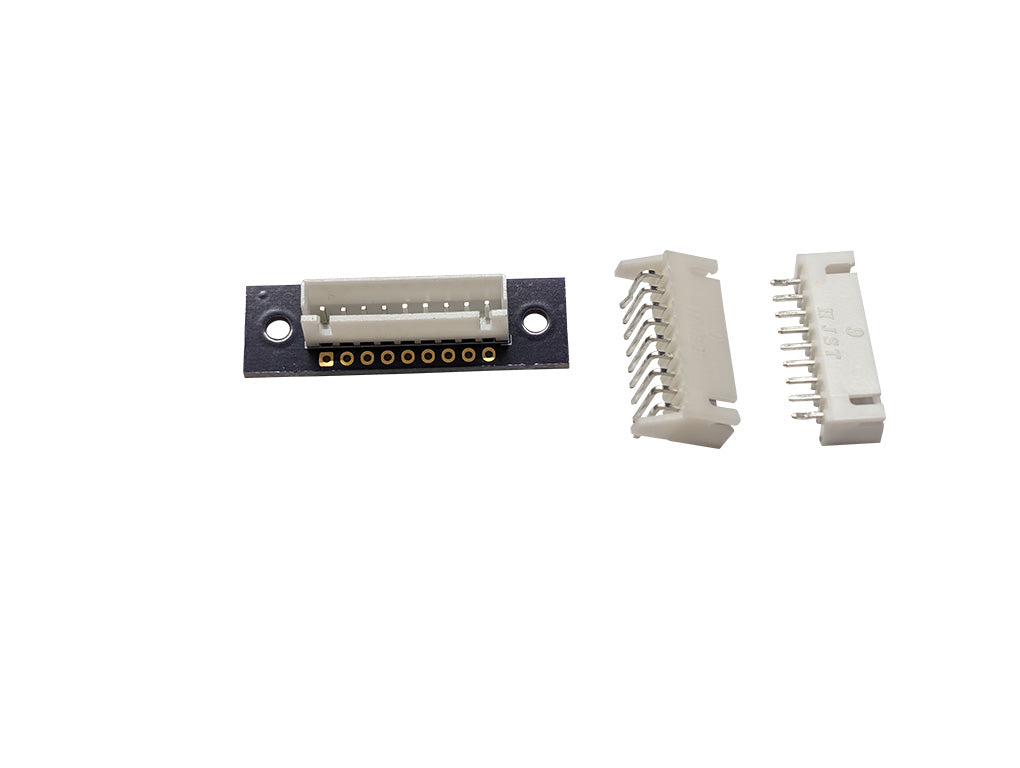

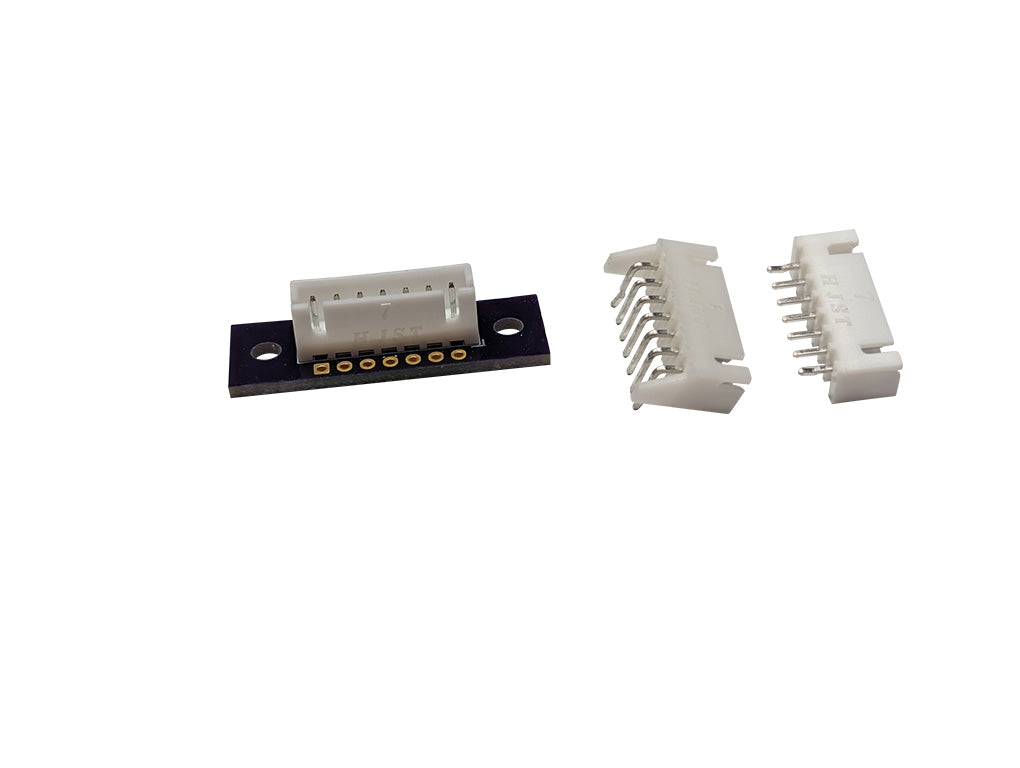

Each board comes with two connectors loose in the package, one being a normal straight JST-XH and the other being a right angle JST-XH. This allows you to choose which orientation to solder the connector in, as some JST-to-JST cables come with differently oriented wiring (i.e. some come with Pin1 wired to Pin1, others with Pin1 wired to Pin9) so that you do not have to de-pin your cables and also allows you to use them in a wide range of charge case designs. It is recommended that you trim the extra length off of the connector leads once done soldering.
See product photos for the four different orientations and connectors you can solder the connector in to suit your needs.
We can solder the connectors on you for no charge but you must specify which orientation and connector type (straight or RA).
