"The Mini Junk Drawer" - 500W Nanuk 909 w/ Storage

"The Mini Junk Drawer" - 500W Nanuk 909 w/ Storage

Regular price $379.99
Regular price Sale price $379.99
Sale Sold out
PSU Choice

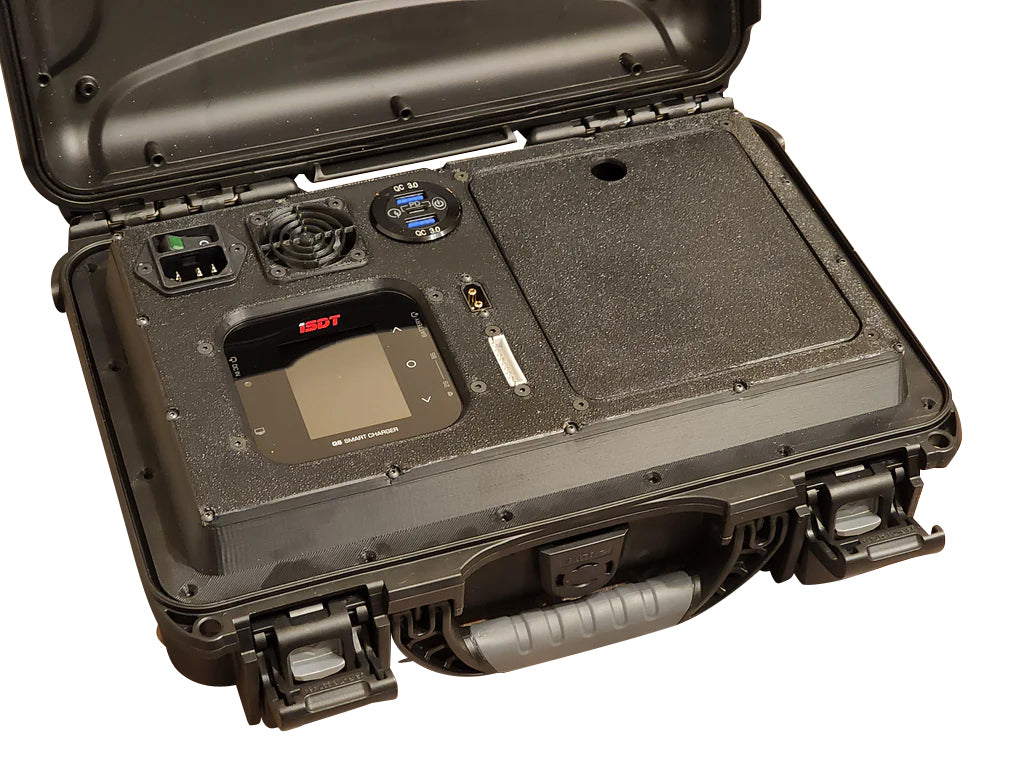

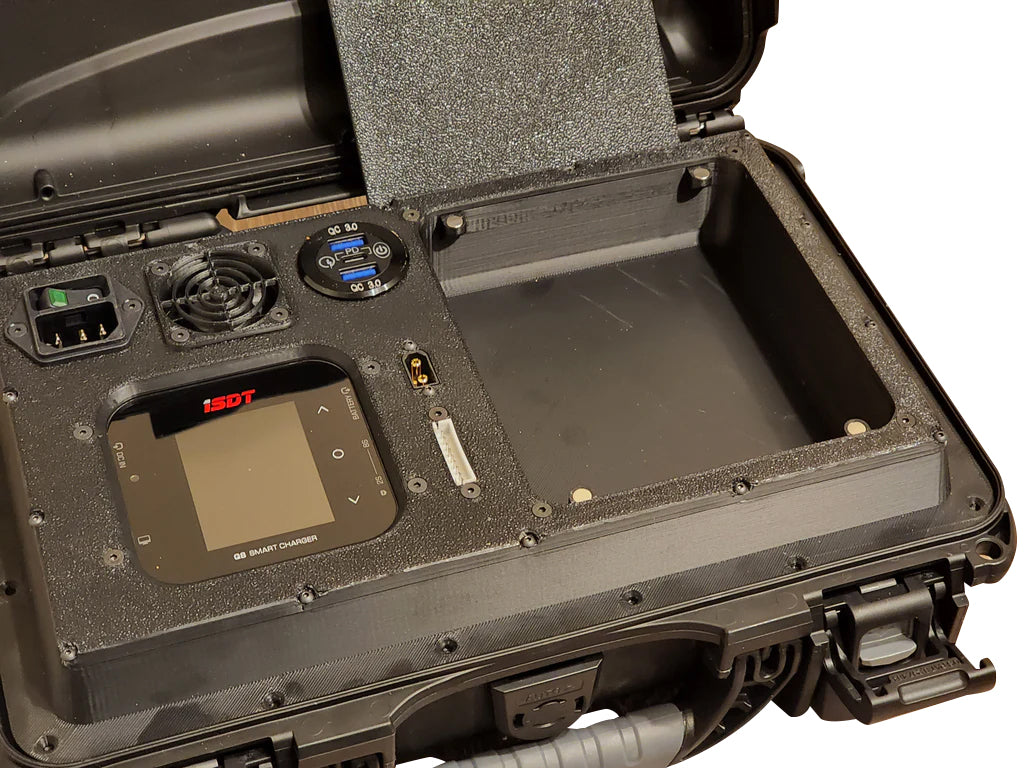

Sharing the same size as the Mini Beast charge case, the Mini Junk Drawer substitutes one of the chargers for a magnetic hatch and storage compartment, in which you can store anything from power and charge leads to smaller LiPos, tools, and more.   At 500W it's still powerful enough to charge 6s packs up in a hurry, but offers a more convenient setup allowing the storage of charge leads inside the case.

Features:
-Nanuk 909 Case, Extremely Rugged and Locks Tightly.

-ISDT Air 8 500W Charger, up to 500W (6s @ 20A) of charging capability. ISDT chargers shipped with our cases are always updated to the latest firmware prior to case assembly and shipment.  Any future updates to the firmware must be applied by the user and will involve disassembly of the charge case.

-Mean Well RSP 500W 24V Power Supply for Reliable, Clean Power.  The power supply is tuned up to a slightly higher voltage than default, usually 26-28V, to provide a slightly higher efficiency when charging 6s LiPos.

-High Airflow Ball Bearing 24V Fan for Reliable Cooling.

-ABS 3D Printed Deck that will hold up to the summer heat.

-XT60 Outputs for Simplified Charging (no more unreliable and wear prone banana plugs)

-Dual USB QC3.0 Outputs* for charging your phone or other USB device at the field.

This product includes:
1 x Fully Assembled Charge Case
1 x Right Angle IEC Input Cable

*May be substituted for dual QC3.0 + USB C PD at our discretion depending on availability.

Be aware that because every case is made to order and often customized in several ways, the photos may not perfectly reflect what you get, including not only colors but USB module versions, different inlet styles, and different availability of various components.

There are two options with this case.  The default configuration, using a Mean Well RSP-500 power supply, has a storage bin with an interior depth of around 35mm.  It is possible to get a larger bin with a depth of around 45mm for some extra space, but this requires the use of the Mean Well UHP series power supplies which are a bit more expensive due to their newer product status.  The choice is up to you.

Color customizations are available.  If you do not provide any customization requests either by email or order special instructions, the assumed configuration will be "Blackout", with a black case, black bezel, black deck, black fan grill, etc.  All of these colors can be customized, however.  Available colors for the case depends on availability from our suppliers, contact us for info on availability.  Available colors for printed parts are as follows:

Black
Graphite
Gray
White
Red
Orange
Yellow
Green
Lime Green
Blue
Light Blue
Purple
Hot Pink

You can also choose to exclude the USB output module, or choose a different style (must be 30mm diameter) if you find one you like better.  On cases that have it, you can also choose to exclude the auxiliary power output.

We do not keep stock of cases nor components.  Due to the low order volume of charge cases, each case is built individually to order.  This allows easy customization requests and changes to the case design.  Due to the MTO nature of charge cases, there can be up to a 1 month lead time before shipping after you place your order, especially with more complex customizations like component substitutions.  There is a $200 order cancellation fee if you decide you do not want the case after your order is placed.  NO EXCEPTIONS.
