"The Junk Drawer 2.0" - 1000W Nanuk 910 w/ Storage

"The Junk Drawer 2.0" - 1000W Nanuk 910 w/ Storage

Regular price $849.99
Regular price Sale price $849.99
Sale Sold out

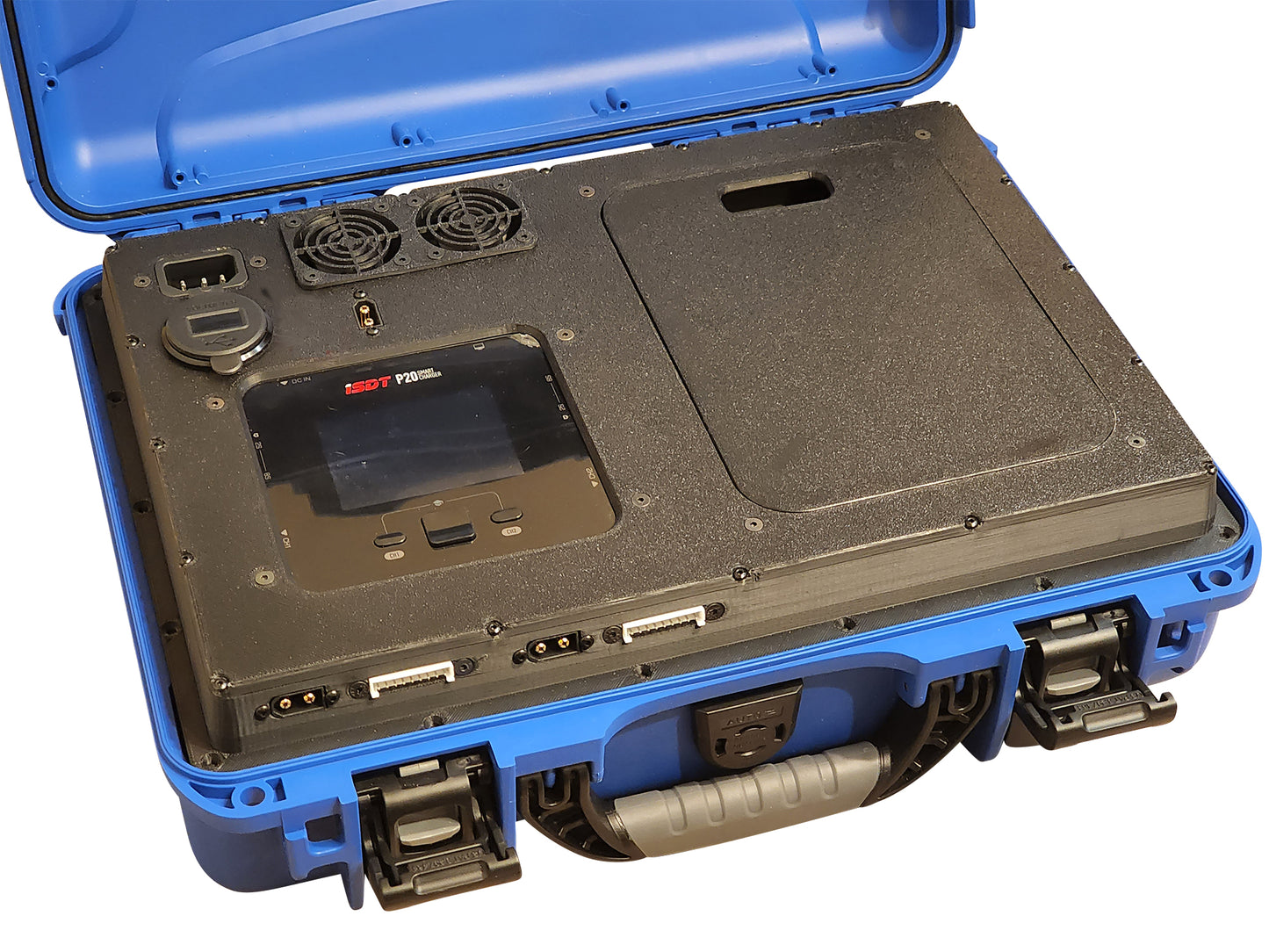

Taking inspiration from the Junk Drawer, the Junk Drawer 2.0 replaces the two ISDT Q8s with a single ISDT P20, which can be used as two separate channels or combined with a special cable to charge a single output at up to 35A in Synchronous mode.  The Junk Drawer 2.0 charge case has a magnetic hatch and storage compartment, in which you can store anything from power and charge leads to smaller LiPos, tools, and more.

Features:

-Nanuk 910 Case, Extremely Rugged and Locks Tightly.

-ISDT P20 charger for up to 1000W of charging capability. ISDT chargers shipped with our cases are always updated to the latest firmware prior to case assembly and shipment.  Any future updates to the firmware must be applied by the user and will involve disassembly of the charge case.

-Mean Well RSP-1000 24V Power Supply for Reliable, Clean Power.  The power supply is tuned up to a slightly higher voltage than default, usually 26-28V, to provide a slightly higher efficiency when charging 6s LiPos.

-High Airflow Ball Bearing 24V Fans for Reliable Cooling.

-Two-Piece ABS 3D Printed Deck that will hold up to the summer heat.

-In-Deck Storage Compartment for storing charge leads, tools, batteries, and more.  Compartment dimensions approximately 130x180x37mm.

-XT60 Outputs for Simplified Charging (no more unreliable and wear prone banana plugs)

-XT60 Auxiliary Output*

-Dual USB QC3.0 Outputs** for charging your phone or other USB device at the field.

This product includes:
1 x Fully Assembled Charge Case
1 x Right Angle IEC Input Cable

*Auxiliary power pulls from the main power supply, so be sure not to exceed the maximum rating when charging with the case and powering an external load.  The auxiliary output will output the same voltage as the power supply, usually 26-28V.

**May be substituted for dual QC3.0 + USB C PD at our discretion depending on availability.

Be aware that because every case is made to order and often customized in several ways, the photos may not perfectly reflect what you get, including not only colors but USB module versions, different inlet styles, and different availability of various components.

Color customizations are available.  If you do not provide any customization requests either by email or order special instructions, the assumed configuration will be "Blackout", with a black case, black bezel, black deck, black fan grill, etc.  All of these colors can be customized, however.  Available colors for the case depends on availability from our suppliers, contact us for info on availability.  Available colors for printed parts are as follows:

Black
Graphite
Gray
White
Red
Orange
Yellow
Green
Lime Green
Blue
Light Blue
Purple
Hot Pink

You can also choose to exclude the USB output module, or choose a different style (must be 30mm diameter) if you find one you like better.  On cases that have it, you can also choose to exclude the auxiliary power output.

We do not keep stock of cases nor components.  Due to the low order volume of charge cases, each case is built individually to order.  This allows easy customization requests and changes to the case design.  Due to the MTO nature of charge cases, there can be up to a 1 month lead time before shipping after you place your order, especially with more complex customizations like component substitutions.  There is a $200 order cancellation fee if you decide you do not want the case after your order is placed.  NO EXCEPTIONS.
