FrSky Archer Plus R8/SR8/GR8 Receiver Mount w/ Antenna Guides

New! Now includes hex head screws for superior drive torque and no more stripping screws.  Use 1.5mm hex driver to install included screws.

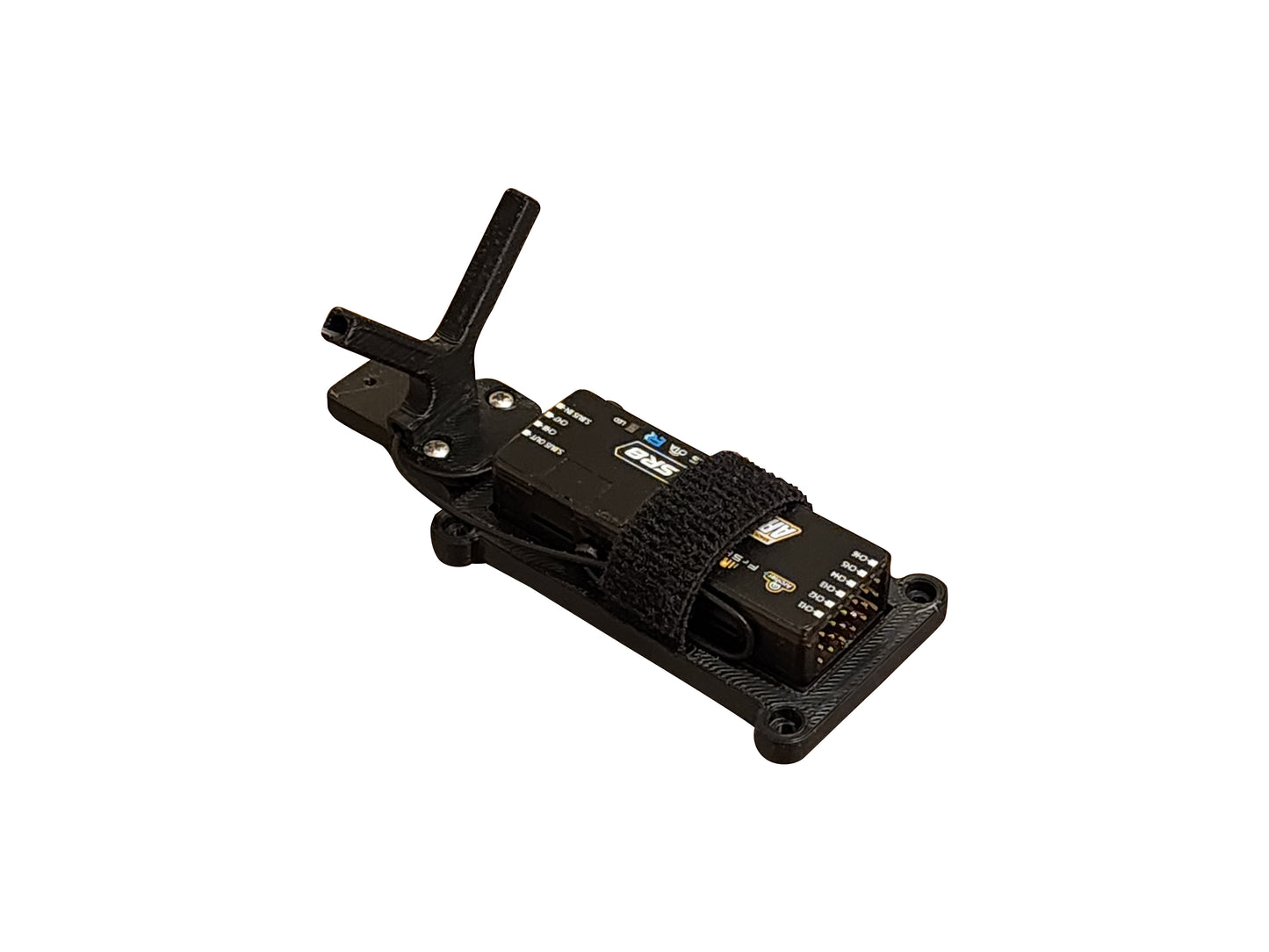

Securely mount your FrSky Archer Plus R8, Archer Plus SR8, or Archer Plus GR8 receiver to your airframe using four screws with a layer of double sided tape and hook and loop tape added for vibration isolation.

This version features an extended base with holes to attach our antenna guides.

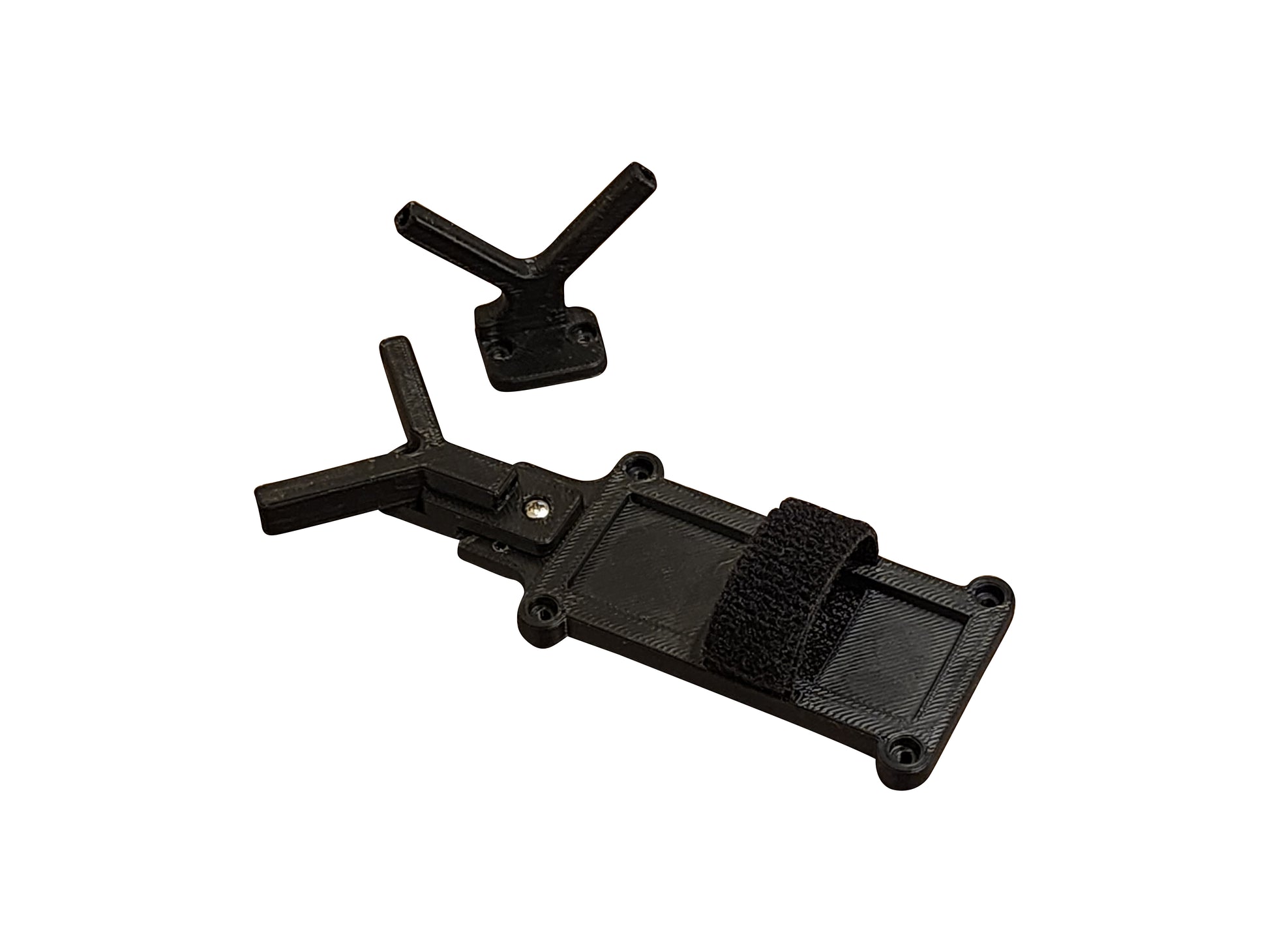

Comes with two types of 2.4G antenna guides.  See product photos for details.  Use the one that suits your needs better.  When using the vertical 2.4G mount, you can cut off the excess length of the base behind it.  These antenna guides are specifically made for this receiver mount, due to this being a new generation receiver but without using the newer style tube shield dipole antennas most newer FrSky receivers come with.  They feature a 3.2mm hole in which you can install a ~3mm diameter plastic antenna tube.  Due to size variation in these tubes from various sources, the hole is oversized and they must be glued in.

This product includes the 3D printed mount, two antenna guide pieces, two M2x5mm and four M2x10mm self tapping screws.   It does not include double sided tape.  The use of 3M VHB 4910 double sided tape is highly recommended to attach the receiver to the mount, but you can also use adhesive backed Velcro or even just hot glue.

Printed in black ABS plastic.  Other colors available upon request.

This product is made to order, so processing time before shipping can take as much as one week.
